Sprint 0: Product Definition
Product Definition
Problem and Solution
"Don't worry. There will be new problems."
—Slavoj Žižek
Context
Before the advent of cloud computing platforms, software projects were usually deployed on the hardware owned by an organization. These hardware resources were managed by the Information Technology department, usually the person acting as system administrator or "sysadmin".
This approach, while simple enough for common use cases, is prone to fall short of requirements as time goes on. In other words, it does not scale well.
Developers wanting to deploy their applications were constrained by the current available resources of their organization and/or the sysadmin's willingness to allocate the resources needed. Moreover, the inability to quickly allocate more machines as needed, further restricted the system's capacity to handle a growing number of requests.
Trying to address these issues, engineers at web companies proposed cloud computing as a reliable alternative to the on-premises model, while introducing a flexible pay-as-you-go pricing that cut costs.
As of 2023, it was estimated that the market size for public Infrastructure as a Service was around 133 billion US dollars (according to Statista). In 2025, it was expected to grow by around 25% (ibid).
As time went on, however, new problems arose.
The Problem
Flocks of businesses transitioned to off-premises infrastructure managed by platforms such as Amazon Web Services or Google Cloud Platform. As these platforms gained more footing in the market, customers started to realize that they had made themselves depend on these companies to run their businesses or even offer their services. In addition, as cloud infrastructure platforms diversified, their pricing tiers became more complicated to grasp. Breaking down the increasing cloud costs to management became burdensome, and some companies started moving back to the on-premises model.
That's where Rizu comes in.
The Solution
Rizu is our proposed alternative for small and medium businesses that want to have physical control of their infrastructure while taking advantage of a virtual cloud-like experience.
Naturally, there are already similar projects that implement similar functionalities (some of these are mentioned further down this document). Rizu strives to simplify the process of creating a private a cloud by providing a simpler interface that interacts with bare-metal solutions such as Apache Cloudstack™. As the saying goes, there are many like it, but this one is ours.
Project Members
| Member | Role(s) | |
|---|---|---|
| Jerónimo Acosta Acevedo | jacostaa1 at eafit.edu.co |
Architect, Scrum Master |
| Paula Inés Llanos López | pillanosl at eafit.edu.co |
UI/UX, Testing |
| Luis Miguel Torres Villegas | lmtorresv at eafit.edu.co |
Programmer |
| Juan Sebastián Jácome Burbano | jsjacomeb at eafit.edu.co |
Programmer, UI/UX |
Target Audience
-
User (Developer/DevOps Engineer): The user is the end client who directly consumes the resources of the private cloud. Their main need is to deploy and manage infrastructure quickly and easily, such as virtual machines (VMs), networks, storage, and databases.
-
System Administrator: The System Administrator is responsible for the operation, maintenance, and monitoring of the Rizu platform. They identify errors, and generate reports that are key for better decision-making. They also oversee the proper operation of the integrations with Terraform, OpenTofu, and OpenStack.
-
Terraform and OpenTofu: Terraform and OpenTofu are "Infrastructure as Code" software tools that automate the deployment and management of infrastructure through configuration scripts. They are like a bridge between Rizu and OpenStack.
-
OpenStack: OpenStack is an open source cloud computing infrastructure software that we implement to build and manage Rizu. It provides core infrastructure orchestration services such as virtual machine provisioning (Nova), network management (Neutron), and storage (Cinder, Swift).
-
Rizu(Private Cloud System): Rizu is the central system that connects Terraform, OpenTofu and OpenStack. Its main function is to offer an intuitive user interface that automates infrastructure deployment and management.

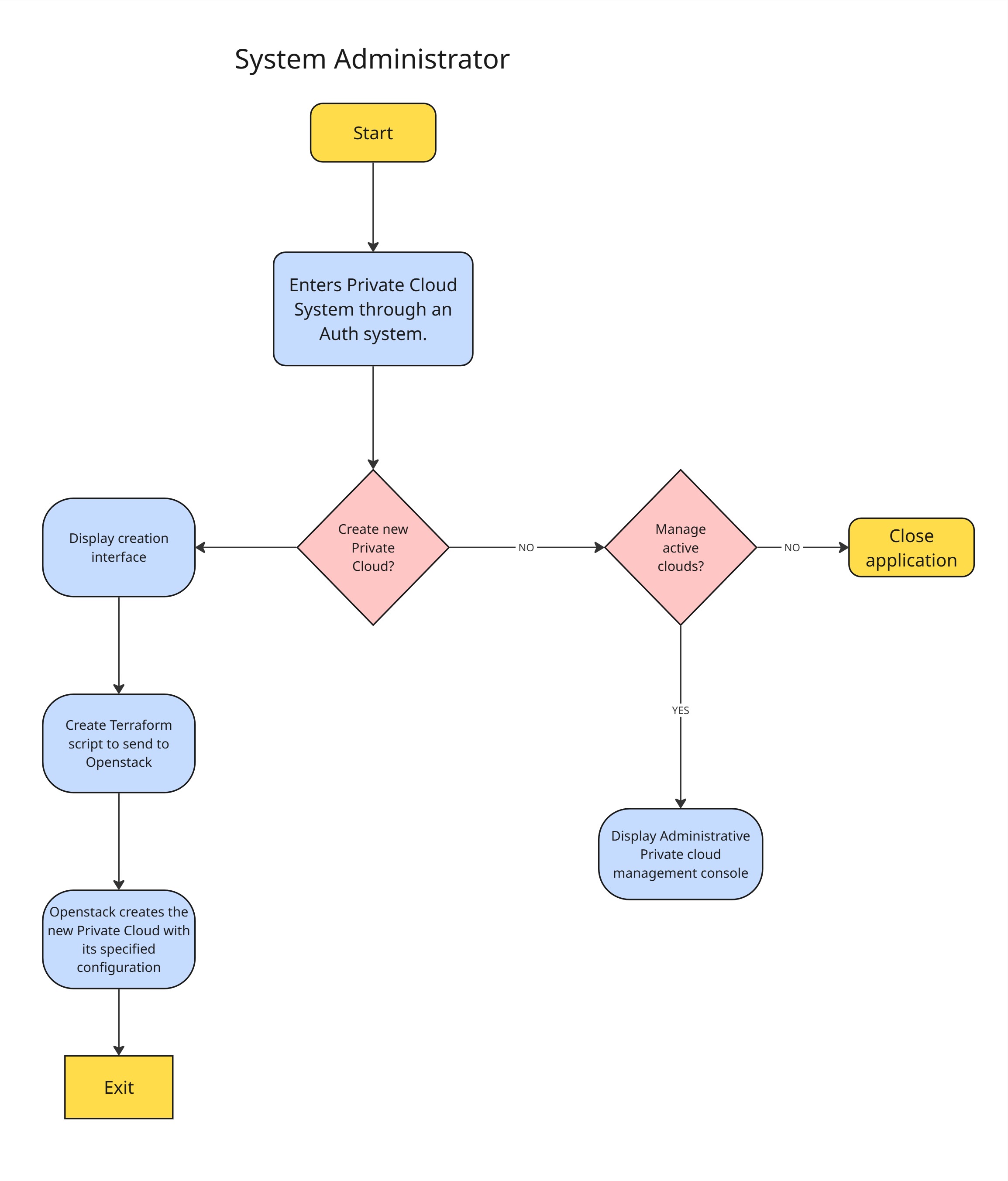

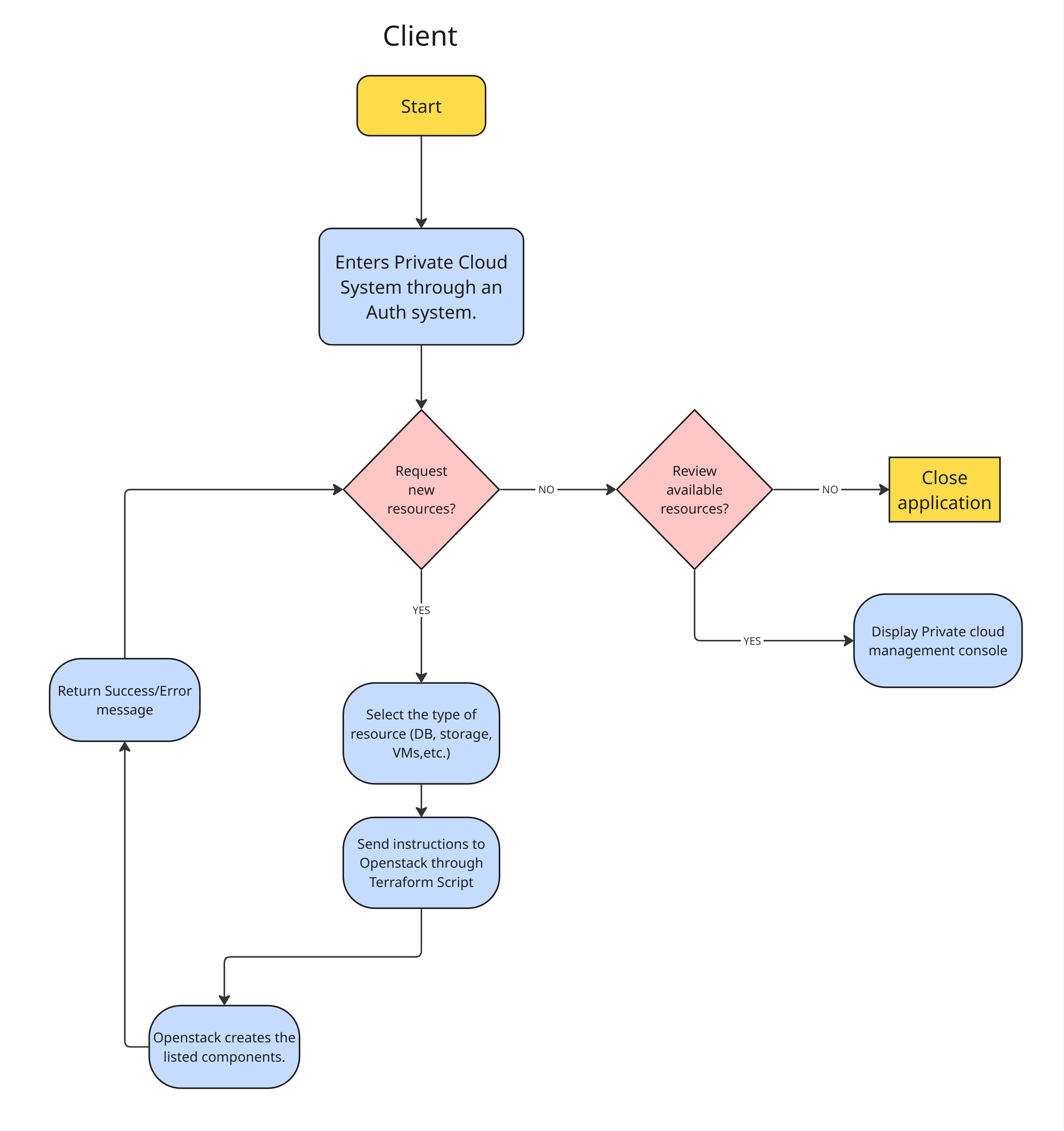

Interaction with the Solution
| Client | Sysadmin |
|---|---|
 |
 |
Glossary
-
Private Cloud: A cloud computing environment dedicated to a single organization. In a private cloud, all resources (CPU, Storage etc.) are isolated and in the control of one organization.
-
OpenStack: An open-source software platform for building and managing cloud computing infrastructure, often described as Infrastructure-as-a-Service (IaaS). It provides a set of tools for managing and provisioning compute, storage, and networking resources, enabling users to create and manage private, public, and hybrid clouds. Essentially, it allows organizations to build their own cloud environments using open standards and technologies.
-
IaaS (Infrastructure as a Service): A cloud computing model where you rent virtualized computing resources like servers, storage, and networking from a provider.
-
Infrastructure as Code (IaC): The managing and provisioning of infrastructure through code instead of manual processes. With IaC, configuration files are created that contain your infrastructure specifications, which makes it easier to edit and distribute configurations.
-
OpenTofu: An infrastructure as code tool that lets you define both cloud and on-prem resources in human-readable configuration files that you can version, reuse, and share.
-
Virtual Machine (VM): An isolated computing environment with its own CPU, memory, network interface, and storage, created from a pool of hardware resources. VMs can emulate endless arrangements of operating systems on the same physical hardware.
-
Networking: In a cloud environment, a network typically consists of several interconnected virtual machines or instances that are hosted on various physical servers within a data center. These instances can communicate with each other over a virtual network, which is created and managed by the cloud provider.
-
Pipelines (CI/CD): A method in which raw data is ingested from various data sources, transformed and then ported to a data store, such as a data lake or data warehouse, for analysis.
-
On-demand self-service: A consumer can unilaterally provision computing capabilities, such as server time and network storage, as needed automatically without requiring human interaction with each service provider.
-
Resource pooling: The provider’s computing resources are pooled to serve multiple consumers using a multi-tenant model, with different physical and virtual resources dynamically assigned and reassigned according to consumer demand. Customers don’t know the exact resource location but may choose a general region (e.g., country, state, or datacenter). Resources include storage, processing, memory, and network bandwidth.
Requirements Specification
Functional Requirements
We set up a meeting to discuss an initial approach to the project with our client. It was held on July 29th at 2:30 PM, and despite some initial hiccups due to a faulty connection, all team members were present and able to participate and ask questions. Thanks to this, we ended up outlining the initial requirements for both the first and second sprints. After completing some initial formalities, which included setting up future meetings, we proceeded to outline the crucial functionalities that our project would require. Our client described the main elements, which included:
- Private Cloud creation.
- VM, DB, and Storage creation.
- Networking.
- Pipelining.
- IaaS architecture.
These core requirements would later turn into Epics, and most user stories would fall under their umbrella. Regarding physical and tangible evidence, please refer to the private drive where all evidence is stored.
Existing Projects
There were few programs which offered the same list of functionalities as ours, but we did find a couple which showcased the viabilily of the solution, as well as giving us an outside perspective into the inner-workings of building a web interface.
-

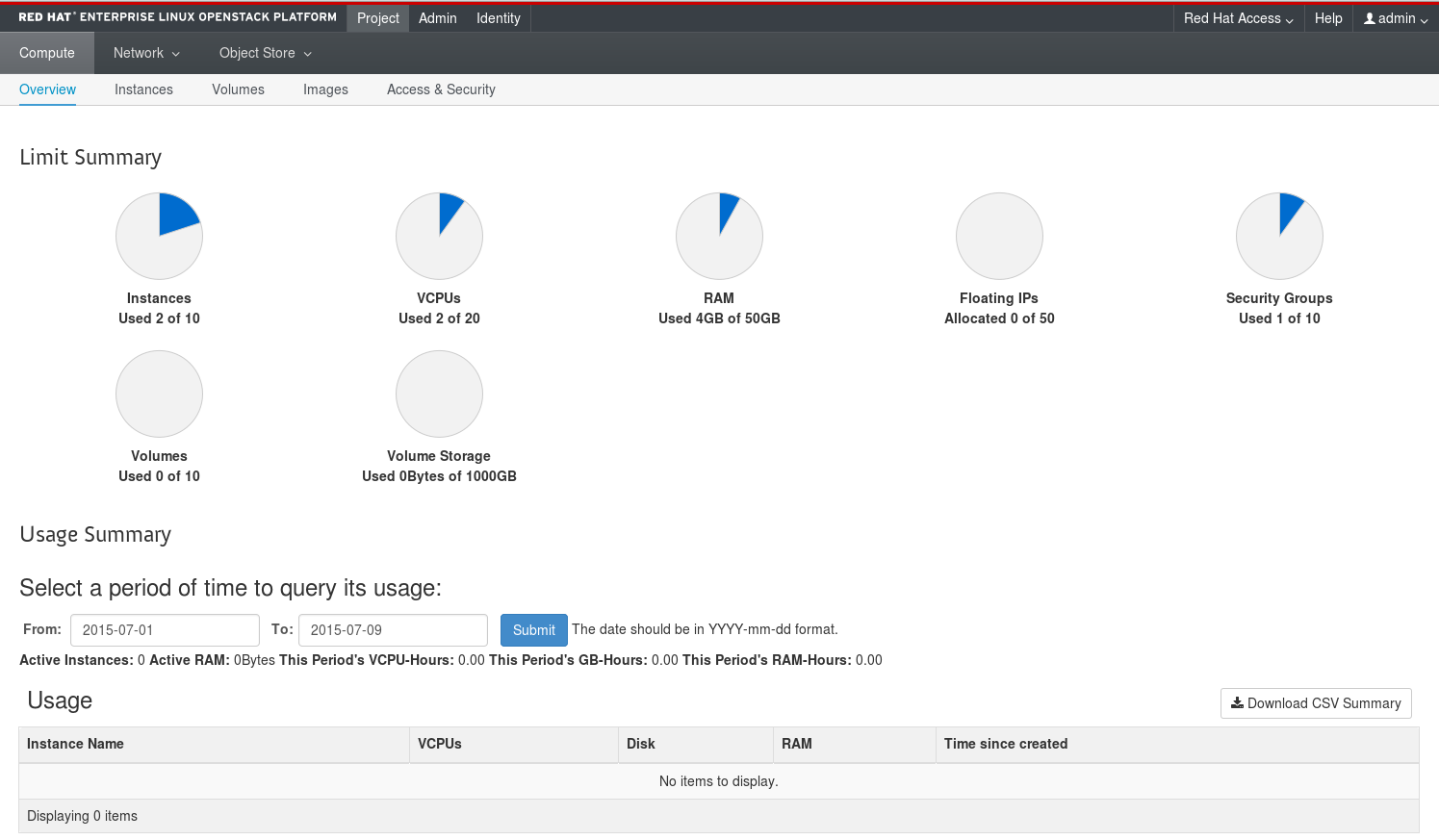

RedHat
RedHat is an implementation of the Openstack functionalities, funneled through a web interface that's designed to be more intuitive than the basic management interface that Openstack offers. It is implemented by a variety of services that control its computing, storage, and networking resources. It can also provision resources, although the method through which it does so is unavailable to us at the current moment. RedHat is the closest software to our proposed solution, so taking a look at it is paramount to the success of this project.
-

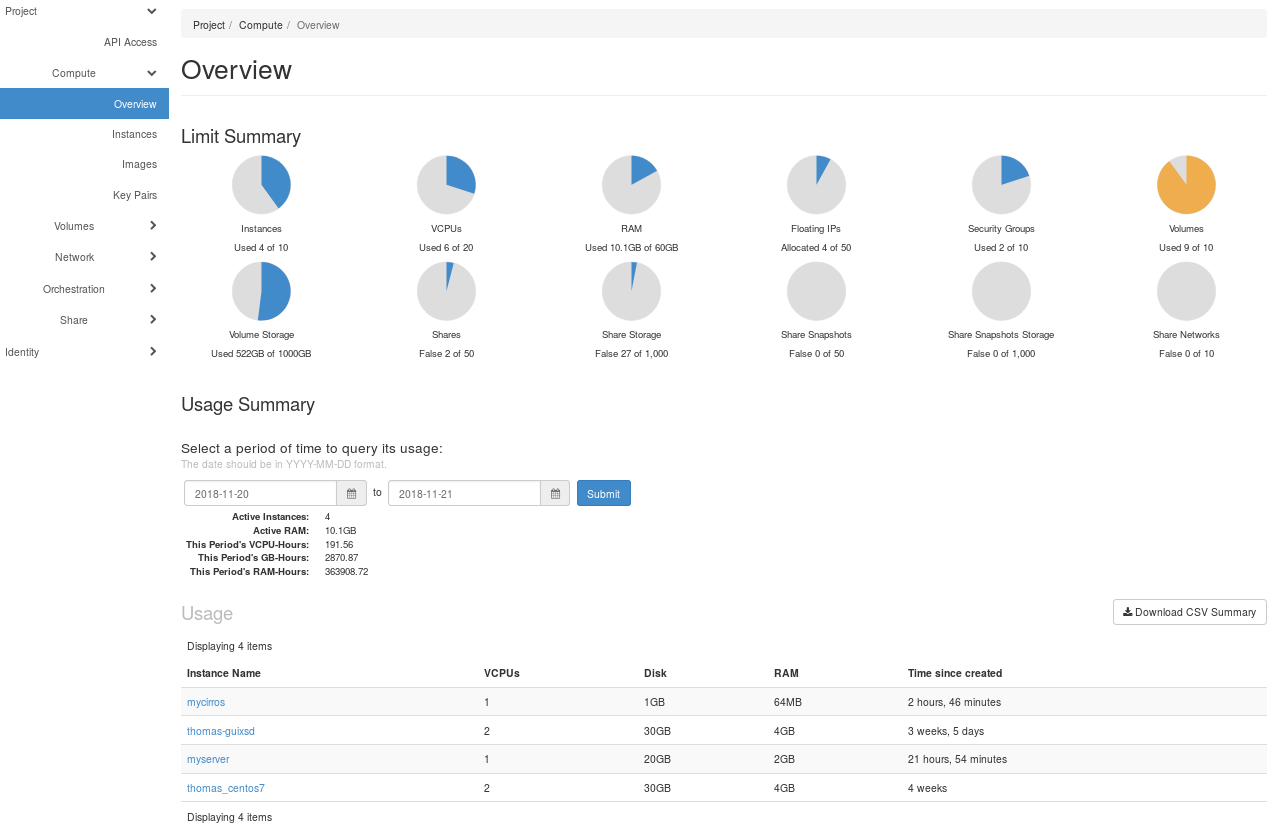

Horizon
Horizon is the OpenStack solution to its own lack of an intuitive management console. The core benefit that Horizon offers is the direct connectivity with the source program. Besides that, Horizon promises Core Support, Extensible and scalable design, consistent performance, and a stable and usable API and interface.
User Story Mapping and Product Backlog

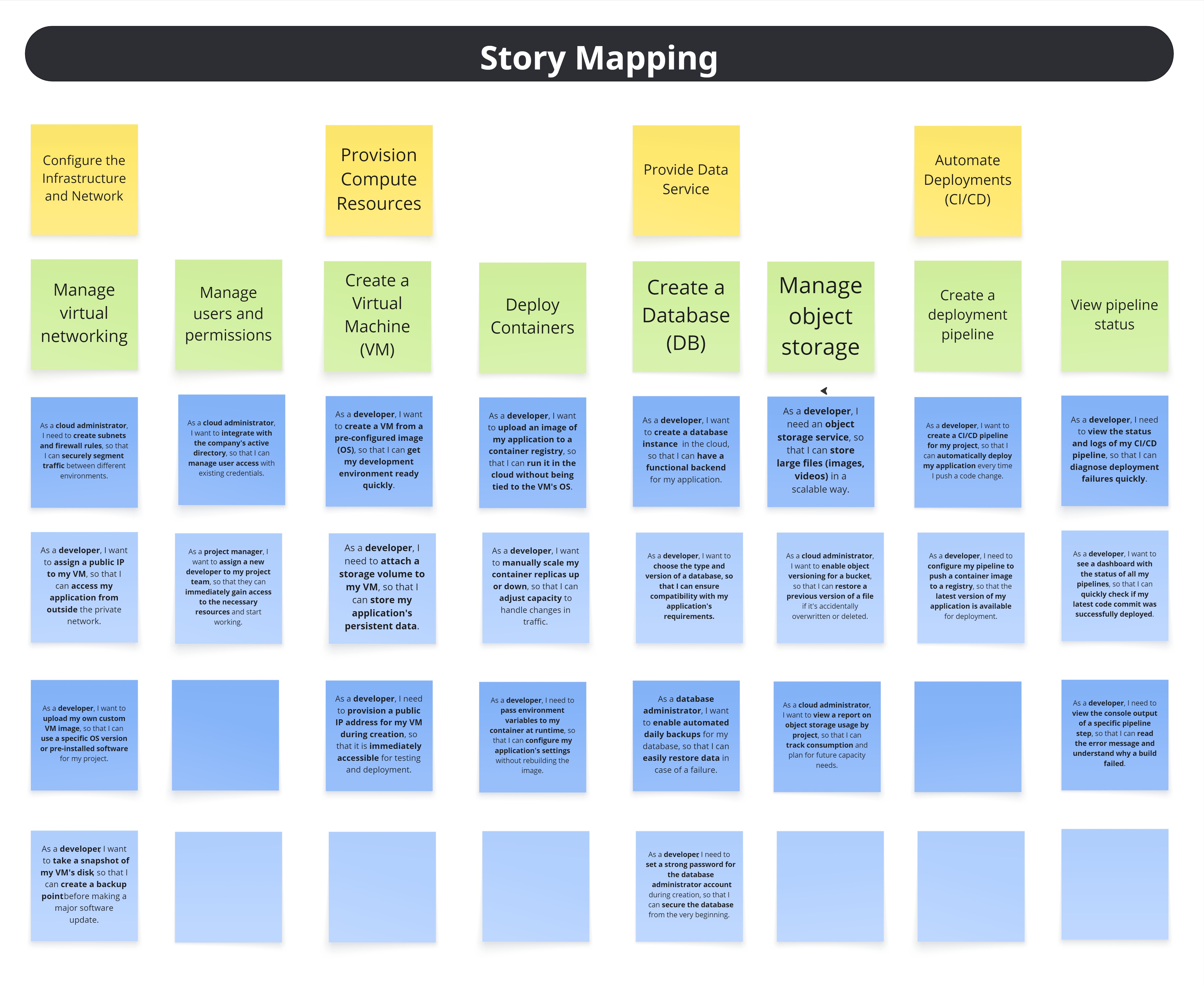

Story Mapping

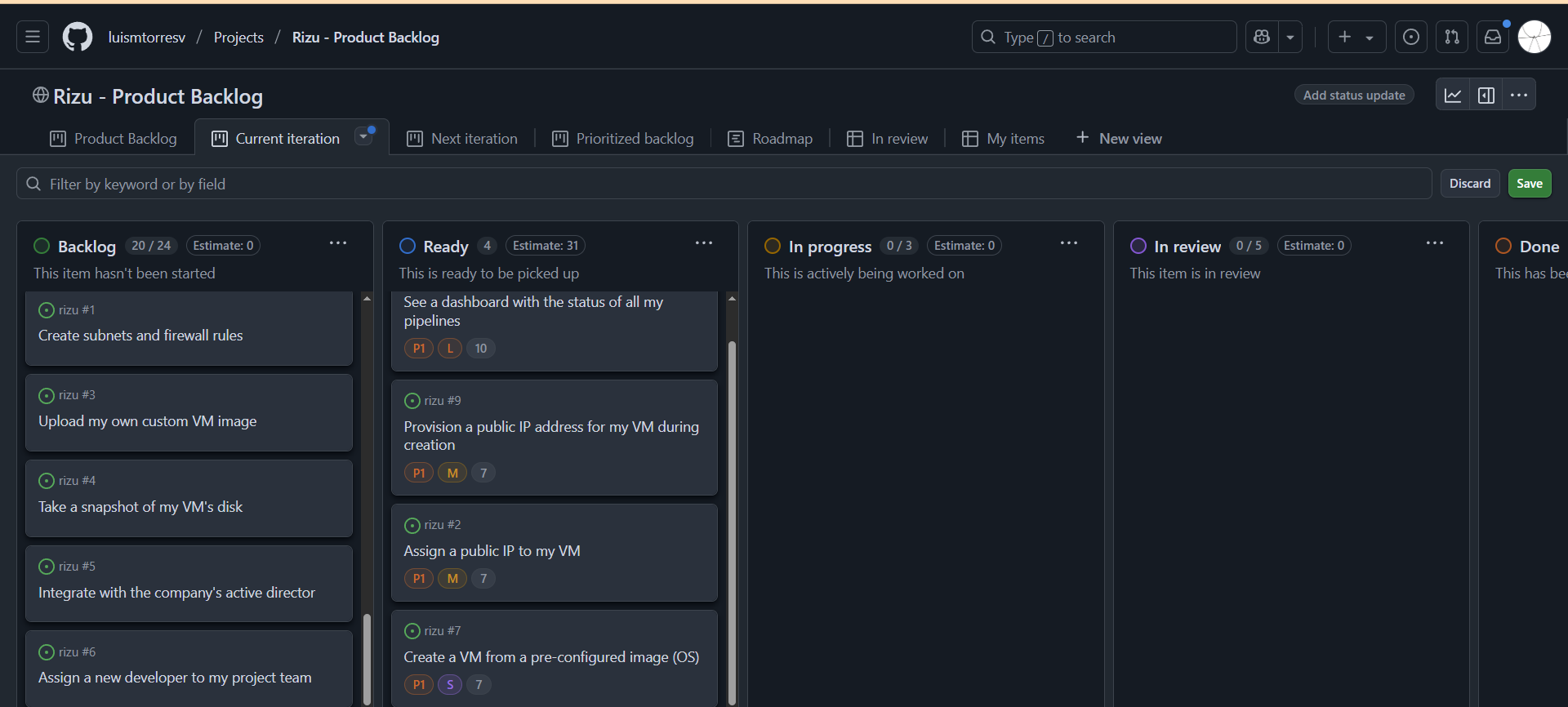

Backlog

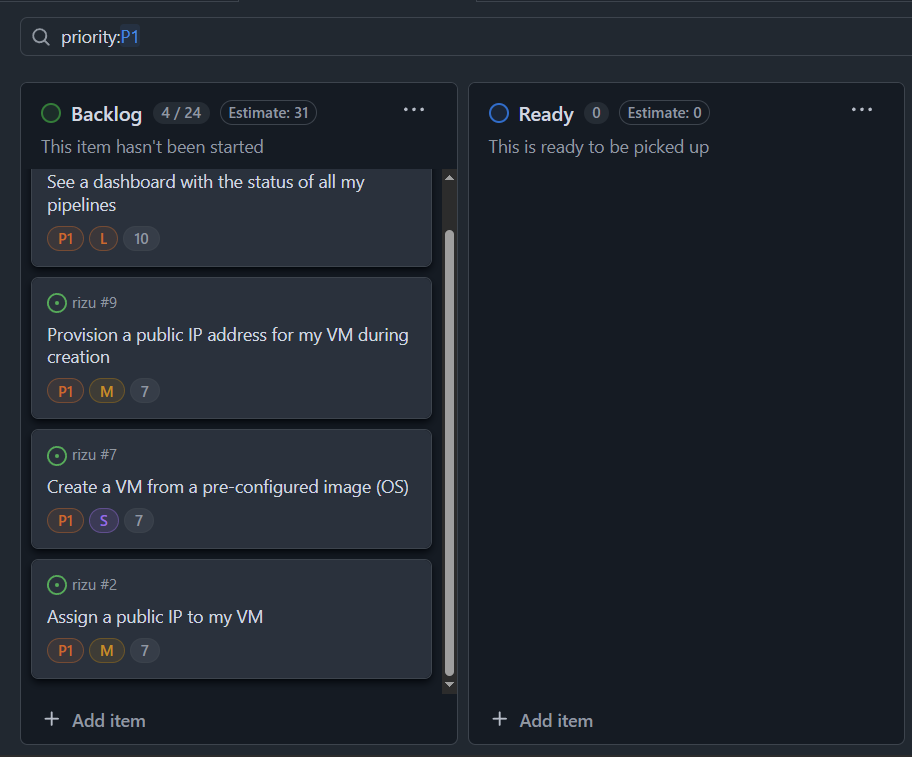

Sprint 1 Planning
Architecture
Scope
The MVP Scope of our private cloud platform focuses on delivering the essential functionality that allows users to easily deploy Virtual Machines and monitor their basic status. The primary objective for this first sprint is to establish the core API integration between our platform, OpenTofu, and OpenStack to enable the instantiation of a virtual machine and return a basic status to the user. The Management Console is primarily aimed at Developers and DevOps Engineers, with no immediate plans for a user-friendly console for non-technical users.
Core Functionalities:
-
Basic VM Creation: Capability to initiate the deployment of a virtual machine with a predefined, minimal configuration.
-
OpenStack API Connectivity: Establish the necessary API connections and authentication with OpenStack services (primarily Nova for VM creation).
-
OpenTofu Automation for VM Deployment: Implement the logic within our platform to generate a basic OpenTofu script for VM creation based on a user request. After that, execute the OpenTofu script to interact with OpenStack and then process the response from OpenTofu (success/failure) and relay it back to the user.
-
Dashboard: A very basic overview, primarily focused on displaying the status of VM creation requests.
Non-functional Requirements
After a lengthy discussion with the client, we outlined a series of non-functional requirements that should be present during the project's development phase. Among these are the following:
- Scalability
- Approachability
Scalability is a core aspect of our page, and we chose to treat it as such. Through productive conversations with the client, we concluded that the MVP wouldn’t need to account for a large influx of traffic at first. This, of course, would change in the future were we to fully deploy it. Therefore, we must ensure that both the chosen architecture and code base allow for future scalability. Processing times must also remain impartial to a growing population, so we must monitor how the interface handles large quantities of incoming and outgoing traffic.
Another highly important characteristic that must be present in the proposed solution is approachability. Through our conversations, we concluded that the average user of a Private Cloud Interface will have basic knowledge regarding cloud computing, VM instancing, among other cloud resources. Therefore, the management interface won’t shy away from displaying the full functionalities of the CloudStack cloud. On the other hand, the Cloud Administrator must have a different view for their assigned tasks, like networking, which means that we must alter the management interface to align with their tasks as well.
Domain Modelling
Due to the nature of this project, we felt that a context diagram would fit best for an overall model of the solution, as a class diagram or an ERD would not describe our project as well as we would like to for this first sprint. Therefore, please refer to section 1.3 if you wish to see the diagram
Components and Subsystems

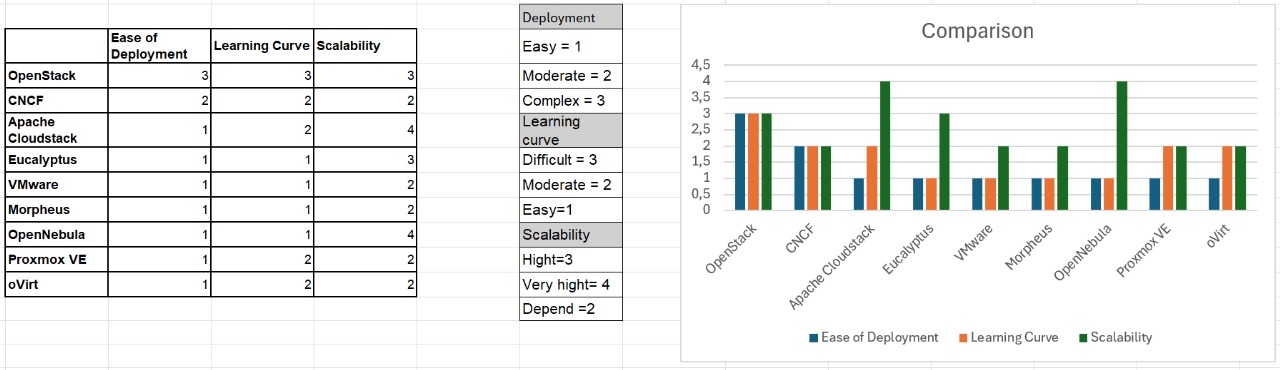

Since the proposed architecture is rather small and doesn't require many
components, we instead chose to make a comparison between a select number of
software that could be used for our solutions; and tried to discern what
benefits and setbacks they could offer us. These softwares would be used for the
private cloud creation and resource provisioning section of the architecture.
When it comes to the actual web interface, we have considered the use of languages such as Python, Javascript, and even PHP and their respective framworks for the front-end side of the equation. Additionally, a Infrastructure as Code language is needed to accurately send infomation to CloudStack. For this, we have considered using the language Terraform, which has been commonlly used in conjuction to Openstack in the past. However, alternative options such as OpenTofu are still on the table.
Components Diagram
Mock-ups
Prototype
🔗 Interactive prototype in Figma.

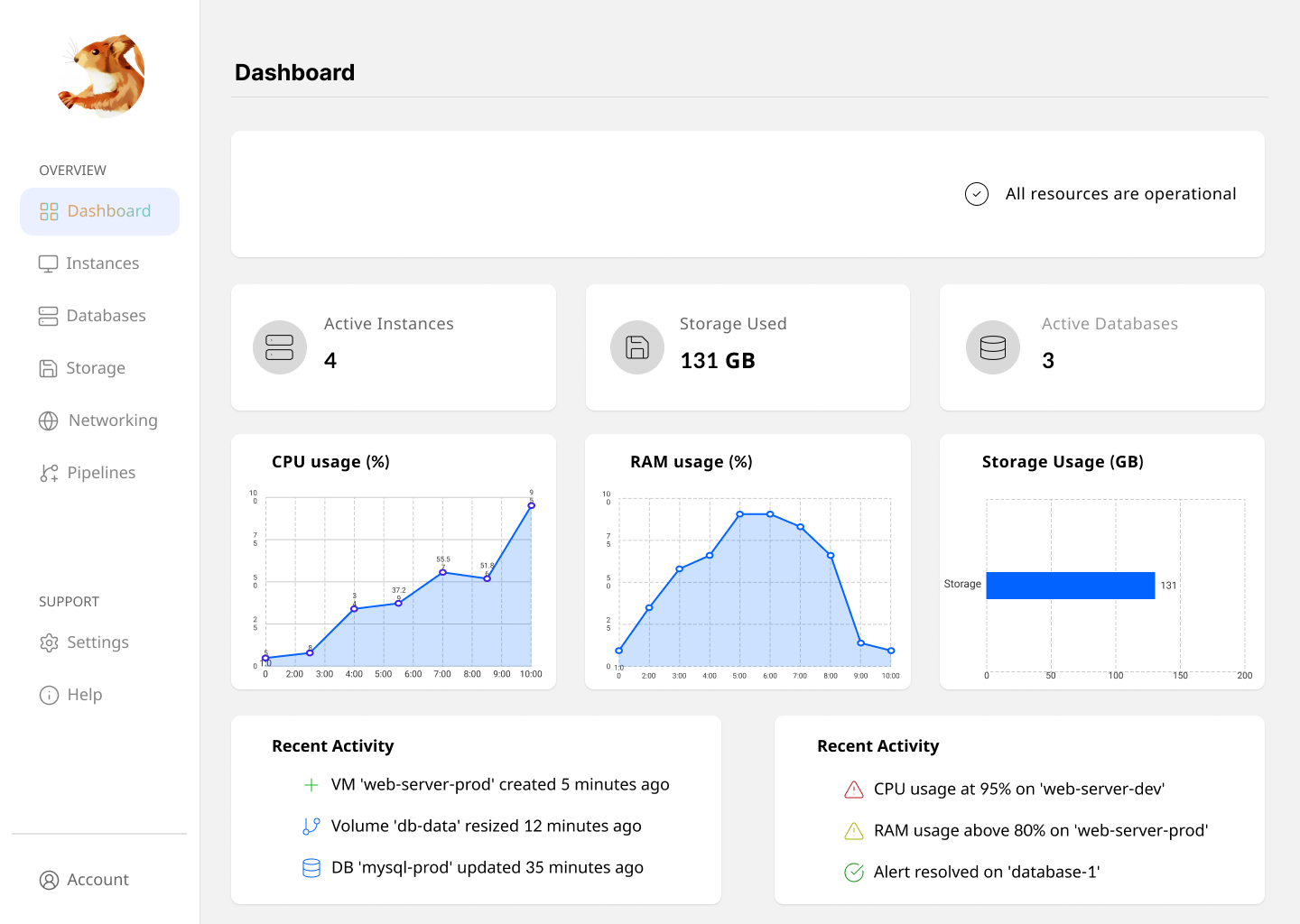

Dashboard
Testing
During a meeting with the client, we presented the initial design of our platform and showed the dashboard layout. The client approved the proposed design and suggested using colors similar to those on Softserve’s website for the final application, so it feels more familiar.
Additional test cases for the interactive mockup include demonstrating how the interface looks and behaves when a user initiates the creation of a VM. While testing this scenario, the client recommended looking into more similar platforms to identify best practices and more features we could incorporate.
