Sprint 1: MVP Prototype

Executive Summary

What has been will be again,
what has been done will be done again;
there is nothing new under the sun.

Ecclesiastes 1:9 (NIV)

Business Description

Rizu is an alternative dashboard to OpenStack's Horizon targeted at developers with little to no cloud computing experience that want to set up a private cloud on-premise.

Founders/Management Team

Our team is composed of four Computer Science students with experience in web development, cloud infrastructure deployment, computer networking, and design.

Products and services

We only offer one product: Rizu. Besides developing the program, we offer installation, support, and maintainance to organizations.

Target Market

We are targeting junior developers who want to set up their own private cloud on-premises. This includes small to medium companies that already own the hardware needed to do a deployment of this kind, but lack the capacity to hire a full-time expert to manage it.

Competition

We are competing with dashboards such as Horizon (developed by the OpenStack team) and other similar projects.

Business Description

History and background

Rizu was born from a problem in cloud computing: there wasn’t a platform that was both affordable and easy to use. Our goal is to remove barriers that developers and small businesses face, such as the high licensing costs on platforms like AWS or Azure, and how complicated private cloud solutions can be.

So far, we have deployed an OpenStack installation and developed a Proof of Concept dashboard, written in Django, that provides access to key services in cloud computing.

Business Mission and Vision

Our mission is to support individuals, small businesses, and educational institutions with an intuitive, affordable, and accessible on-premise private cloud platform, facilitating experimentation, development, and application management, as well as exploration of learning in their own server environments.

Out vision is to become the leading on-premise private cloud platform that enables individuals,small businesses, and educational institutions to innovate, learn, and grow with full technological autonomy.

Values

Accessibility and simplicity are key elements of our product. We design our platform to be easy to use, removing complexity so users can focus on what really matters: their projects.

Short and Long-term Objectives

Our long-term objectives are to provide a simple and innovative dashboard that both individual users and small companies can easily adopt.

Our short-term plans include providing services related to processing, VM instancing, storage, and networking. These elements will be progressively rolled out. We also want to create a user-journey of sorts, that will familiarize users with cloud computing infrastructure.

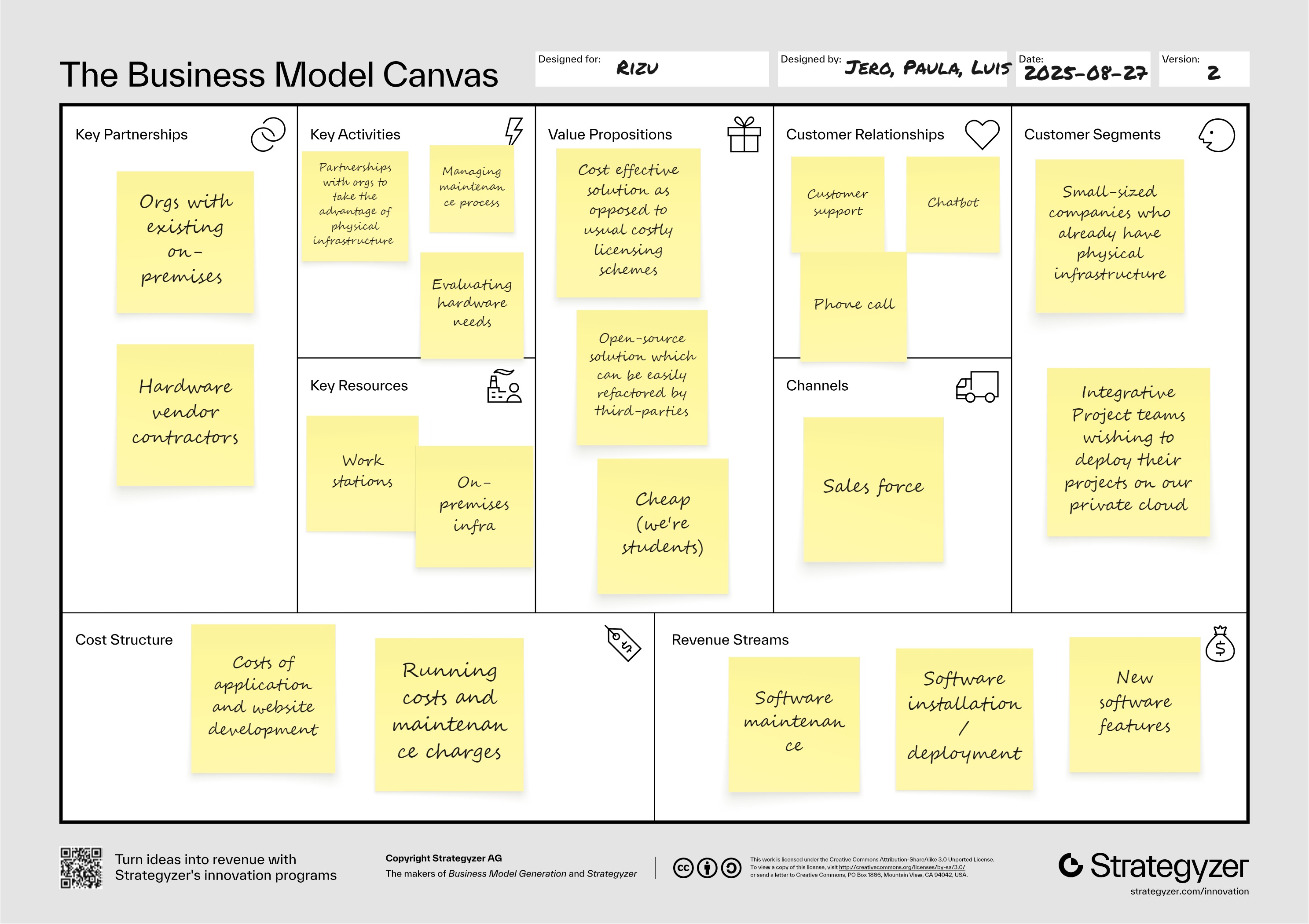

Business Model Canvas

Market analysis

Market Research

For Rizu’s market analysis, we focused on the private cloud computing sector. According to Emma (2025, "Cloud market share trends to watch in 2025"), global cloud services are still dominated by AWS, Azure, and Google Cloud, which together hold more than 60% of the market share. These platforms are powerful and widely adopted, particularly by large corporations, due to their scalability and extensive service offerings.

Despite their success, these providers present challenges for smaller audiences: - High costs that make these platforms less affordable for students and small to medium-sized enterprises. - Although student credits are available, they are typically limited in scope and expire quickly. - Complex platforms that are not always intuitive for beginners or smaller organizations with limited resources, and that often provide more services than are actually needed.

In addition, alternative cloud solutions often come with high learning curves (e.g OpenStack) or are equally expensive (e.g VMware).

Market segmentation

In the cloud computing market, PaaS (Platform as a Service) serves developers and IT teams looking for agility, scalability, and ready-to-use environments. Positioned between IaaS and SaaS, it enables rapid application development without the complexity of infrastructure management. Rizu fits precisely here: an on-premise private cloud PaaS that is simple and intuitive.

Customer Base

Rizu focuses on users who value agility, simplicity, and cost-effectiveness:

Small to medium-sized businesses that already own hardware and want to deploy a private cloud.
Universities that want to provide cloud infrastructure for learning and research.
Junior developers and students who need a practical, low-cost environment to learn and experiment.

Competitive Analysis

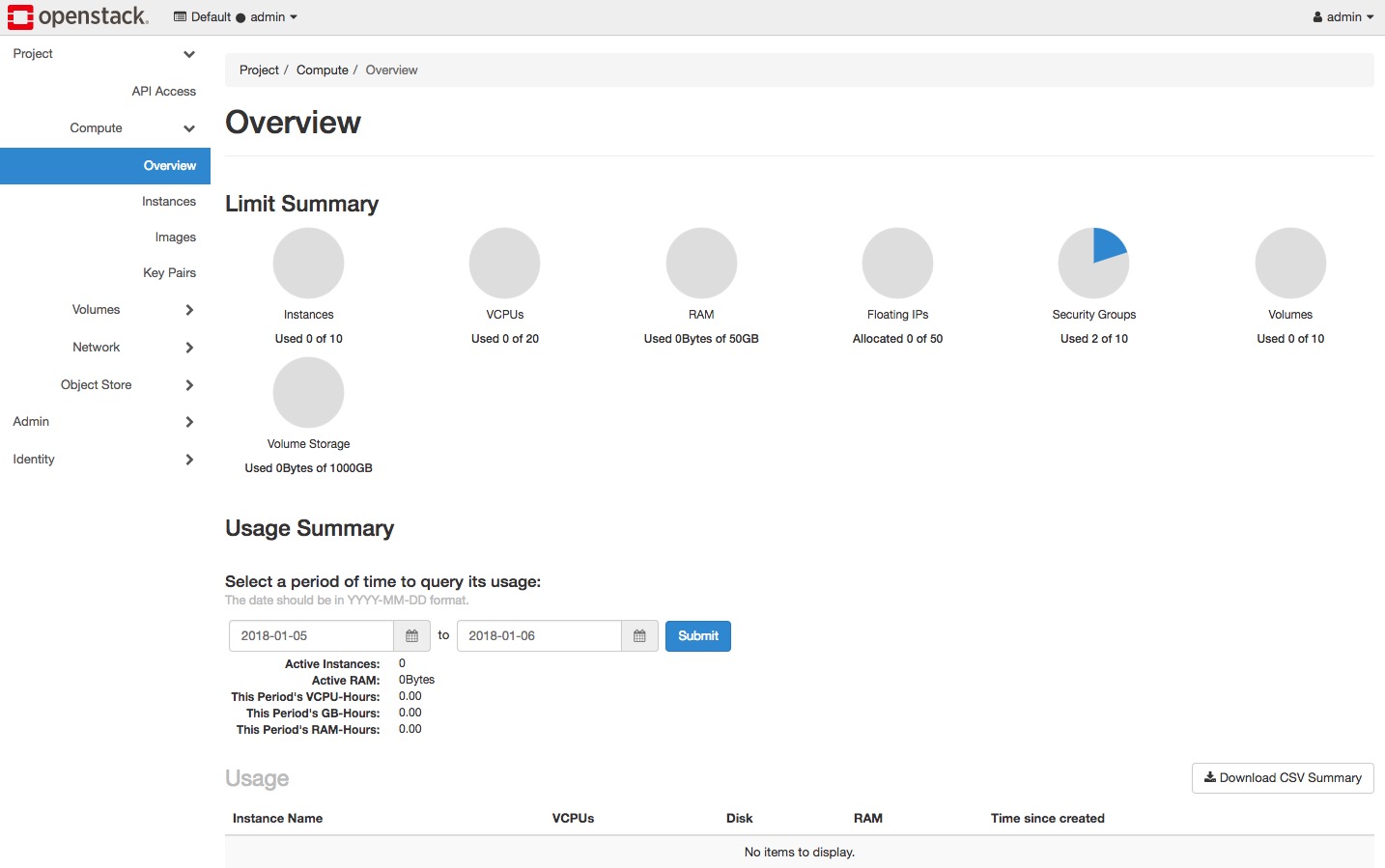

We are not trying to compete with large cloud providers such as AWS or GCP, nor with OpenStack itself. OpenStack already offers the Horizon dashboard:

Horizon is the canonical implementation of OpenStack’s Dashboard, which provides a web based user interface to OpenStack services including Nova, Swift, Keystone, etc.

Horizon's comprehensive swath of panels and tabs offers customization at a cost: high operational complexity and a steep learning curve. Instead, we offer a more convenient way to interact with the underlying OpenStack installation.

Product/Service

Product/Service Description

Rizu aims to provide a cost-effective, simplified PaaS that allows new developers to dip their hands into the world of cloud networking and computing through an on-premise deployment of a private cloud. We use the OpenStack Ansible installation to quickly deploy its components, which can be easily refactored by third parties for additional customization. With Rizu’s automated creation systems, you can quickly set up a private cloud and get it ready for your users’ needs. Such needs include VM instancing, Image storage, Volume storage, networking, and other components that can be easily enabled during the Ansible installation.

Value Offer

Licensing schemes and overall complexity are issues that most newcomers to the field struggle with. When teaching a room full of students who haven’t yet grasped the full idea behind cloud computing, you have to get practical. However, said practicality is quite expensive, especially with the costs associated with operating in IaaS platforms such as AWS or Azure. Furthermore, private cloud software, while available, isn’t intuitive enough for new developers, and the ones that are usually come at a steep price point (looking at you, VMware). Therefore, Rizu was made with one mentality in mind: to offer both a cost-effective and intuitive platform for new developers to get accustomed to the field of cloud computing.

With the use of the open-source, private cloud provider OpenStack, we developed our own dashboard, which, unlike OpenStack’s Horizon, is made with up-and-coming developers in mind. It offers a simplified version of the private cloud creation pipeline and sets everything up behind the scenes so that administrators and users can get into the nitty-gritty as quickly as possible. The private cloud can also be adjusted to suit the administrator’s needs, thanks to Ansible’s flexible configuration.

Product Life Cycle

Context

Although this sprint was meant to focus on stages 4 and 5 of the software development cycle (corresponding to Development and Testing, respectively), due to the uncertain nature of our project's value proposition and complex deployment, we spent most of our time debating and looking back at stages 2 and 3, which are all centered around design.

Currently

After multiple meetings with our client and having talked with our teacher about our ideas, we settled on a project whose value proposition lined up with their ideas for the course. After having spent 70-80% of this sprint on the planning phase, we had little time to develop a working MVP, so we agreed to make some compromises for the expected prototype. Regarding testing, thanks to the nature of our project and of our development plans for it, we chose Scenario Testing as our main testing method for the project, since we could check the functionalities of every user story by checking each acceptance criteria.

Future

We are likely to spend the next sprint cycling through stages 2-5 of the SDLC, planning and developing the core features of our project. We hope that going forward, the change from stage to stage will be far smoother and less stressful than it was this time.

Implementation

Schedule

Milestones

Current sprint

We debated quite a bit with both our client and our teacher, with the subject being the scope of the prototype of this first sprint. In the end, we agreed to the following milestones:

The Rizu dashboard must have the ability to create new projects within OpenStack through some sort of user input. The Amount of expected inputs can vary, but they must all lead to the creation of a new project, which must be visible within the dashboard itself.
All API connections will be done using the OpenStack SDK. We must learn how to use it first, and then we can integrate it with our project.

For future sprints

Lastly, we talked about what we wouldn't do for this sprint due to both time constraints and the difficulty of the task. Although Terrafom and IaC implementation is a critical aspect of this project, we concluded that that particular milestone would be better suited for the 2nd sprint.

Other OpenStack projects would also be left for the second sprint, such as Nova; although in this particular case, it was because of an infrastructure error that we couldn't solve in time for this first sprint.

There is also the matter of the cloud deployment in the university infrastructure, and while that space has been opened to us, we are still using the Azure VM to test our prototype until further notice.

Resource Requirements

Kolla-Ansible OpenStack Deployment

Thanks to Ansible, we gain the ability to install every single OpenStack project at any given time. This allows for future growth if needed, and it also simplifies the installation process by reducing the complexity of installing each component individually.

Python

Python was our preferred language due to our familiarity and its ease of access when it came to OpenStack. This is due to the already available OpenStack SDK for Python, which allowed us to connect to the myriad APIs found in the open-source software.

Django

We also chose Django due to our familiarity with it. Everybody in the team was already familiar with it, and since we chose to use a client-server-based architecture using MVC, Django was our go-to opinionated framework for the task.

Bootstrap

The mockups for our dashboard were quite detailed, and we couldn't spend too much time thinking about the styles of each element of our application, so we chose to use the Bootstrap classes to fill out our views and templates.

Python OpenStack libraries

The OpenStack SDK for Python, which came as API access for the different projects found in OpenStack: Nova, Neutron, Keystone, etc. The OpenStack SDK libraries grant us quick access to the cloud's systems with easy-to-understand classes and modules.

Azure Virtual Machine

This resource has been critical for our development plans, since we can plan ahead of a real deployment by using the Azure VMs to simulate what the deployment of both our private cloud and our dashboard and project creation page.

Functional Test Case Design

Test Cases

For this project, we developed 3 major user stories that represented the main selling points of this first sprint. Those being: Networking, project creation, and dashboard feedback. Here are the 3 links to the respective user stories. In the comments of said user stories are the description of each test, as well as a video demonstrating the functionality specified in each acceptance criteria. We chose to go for Scenario Testing due to the nature of our project.

Trial and Error

There weren't any apparent errors or bugs in the recordings of each test case. However, the Django logs indicate a couple of mistakes and failed calls, which will be appropriately marked as bugs and placed in the queue.

UT-TC-Error Connections

Software Quality

Naming Standards

As our application is entirely written in Python, we only concern ourselves with Python style. PEP8, a well-known standard with widespread community support, was an initial good choice for our project.

However, we decided to go along with the Black code style which "can be viewed as a strict subset of PEP 8" (ref). As the project documentation states,

Black aims for consistency, generality, readability and reducing git diffs.

We won't rehash those ideas here. For more information, see the Black code style, the PEP8 document, or Kenneth Reitz's excellent stylized presentation on PEP8.

Static Code Analysis

Linter

We use the pylint static code analyzer with a max-line-length = 88 so that it works nicely with Black. It is currently run manually with the command pylint Rizu frontPage (the two Python modules we have so far), as requiring it to be successful in order to merge a pull request could be overbearing. As the documentation says:

Pylint isn’t smarter than you: it may warn you about things that you have conscientiously done or check for some things that you don’t care about.

Does it always make sense to have a module docstring, for instance? Pylint is highly configurable, though, and could be fitted into our preferred style and needs. Sure, it is more opinionated and, self-admittedly, slower, but it's more comprehensive than many other linters.

Formatting Rules

To enforce the formatting rules, we set up a GitHub Action that runs black ("The uncompromising Python code formatter") on each push or pull request:

name: Run Black formatter
on: [push, pull_request]
jobs:
    format:
        runs-on: ubuntu-latest
        steps:
            - name: Checkout repo
              uses: actions/checkout@v4
            - name: Run black
              uses: rickstaa/action-black@v1.3.3
              with:
                black_args: ". --check"

We do not automatically fix formatting errors (we would need an extra GH Action like Stefan Zweifel's popular git-auto-commit-action), but we do block pull requests until they pass the formatting check.

Branching Strategy

We will follow the GitHub Flow branching strategy.

Compared to Gitflow, GitHub Flow has less cognitive overhead, as feature branches get merged into the main branch as soon as they are approved, instead of every now and then. As for trunk-based development, we found it too simple for a team of two that has to work on independent issues at the same time, possibly causing merge conflicts (Git branching strategies - AWS Prescriptive Guidance).

To enforce this, we defined a GitHub branch ruleset forbidding pushes to the master branch without going through a pull request first.

Pull Requests

Additionally, the aforesaid ruleset requires that another person reviews the code first and that all review threads are resolved. As an aside, it also blocks merging until the GitHub action that checks whether the code is properly formatted (i.e. that black --check . has a success exit code).

Here's the JSON version of the ruleset:

{
  "id": 7831407,
  "name": "master",
  "target": "branch",
  "source_type": "Repository",
  "source": "luismtorresv/rizu",
  "enforcement": "active",
  "conditions": {
    "ref_name": {
      "exclude": [],
      "include": [
        "~DEFAULT_BRANCH"
      ]
    }
  },
  "rules": [
    {
      "type": "deletion"
    },
    {
      "type": "non_fast_forward"
    },
    {
      "type": "creation"
    },
    {
      "type": "required_linear_history"
    },
    {
      "type": "pull_request",
      "parameters": {
        "required_approving_review_count": 1,
        "dismiss_stale_reviews_on_push": true,
        "require_code_owner_review": false,
        "require_last_push_approval": false,
        "required_review_thread_resolution": true,
        "automatic_copilot_code_review_enabled": false,
        "allowed_merge_methods": [
          "squash",
          "rebase"
        ]
      }
    }
  ],
  "bypass_actors": [
    {
      "actor_id": 5,
      "actor_type": "RepositoryRole",
      "bypass_mode": "always"
    }
  ]
}

Security

We enabled GitHub's Dependabot alerts. This will notify us if any of our dependencies has a vulnerability, allowing us to quickly respond to the potential threat. This works. Dependabot relies on the configuration file, that would be requirements.txt in this case.
We enabled GitHub's secret scanning alerts. Since our project relies on API connections to private cloud deployments, it is essential to prevent leakage of secret tokens that would potentially allow an attacker to gain unauthorized access to our system (e.g. the upcoming deployment on EAFIT's premises).
